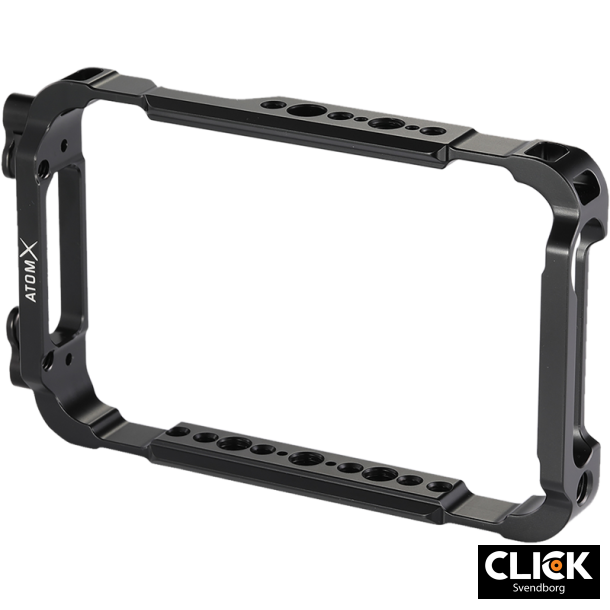

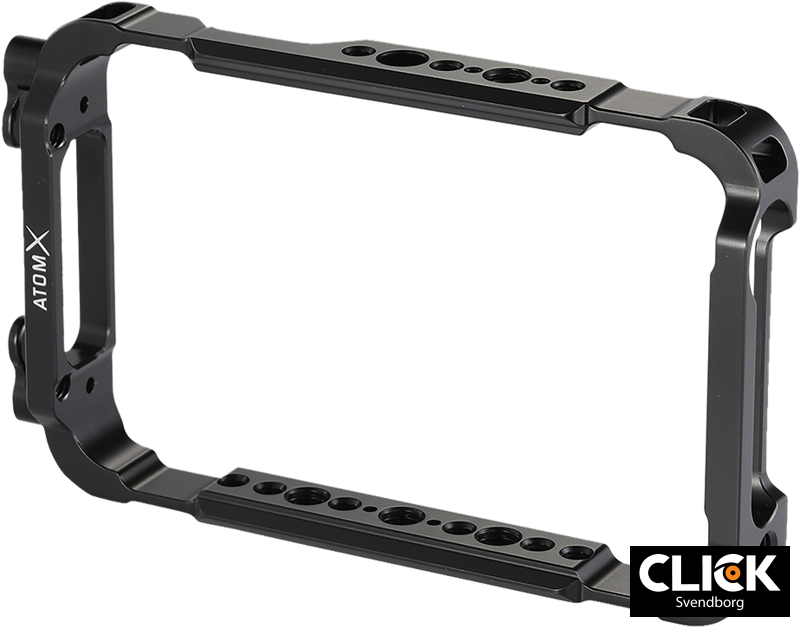

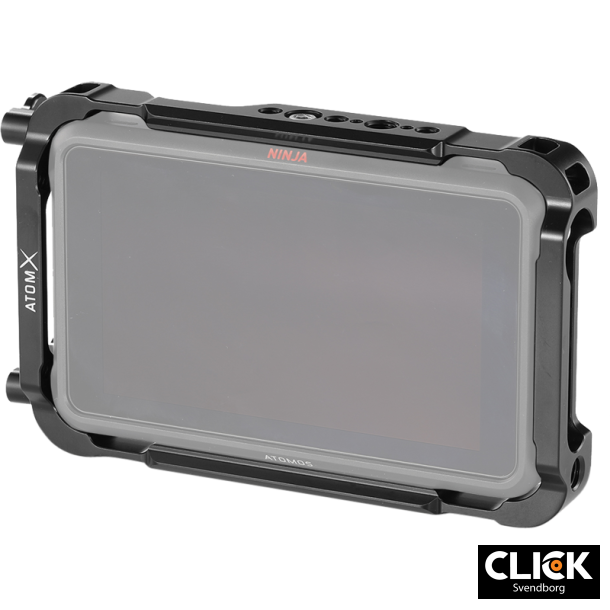

SMALLRIG 2209 Cage for Atomos Ninja V

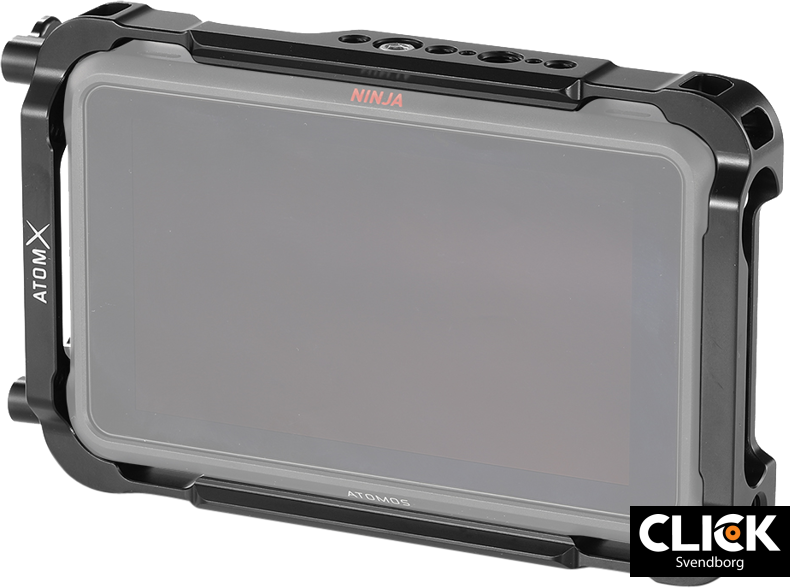

The cage mounts to the monitor by a 1/4"-20 screw on the top and two M3 screws on the left side.
Across the top and bottom the cage features multiple 1/4"-20, 3/8"-16 holes, and an ARRI locating mount point on the base.

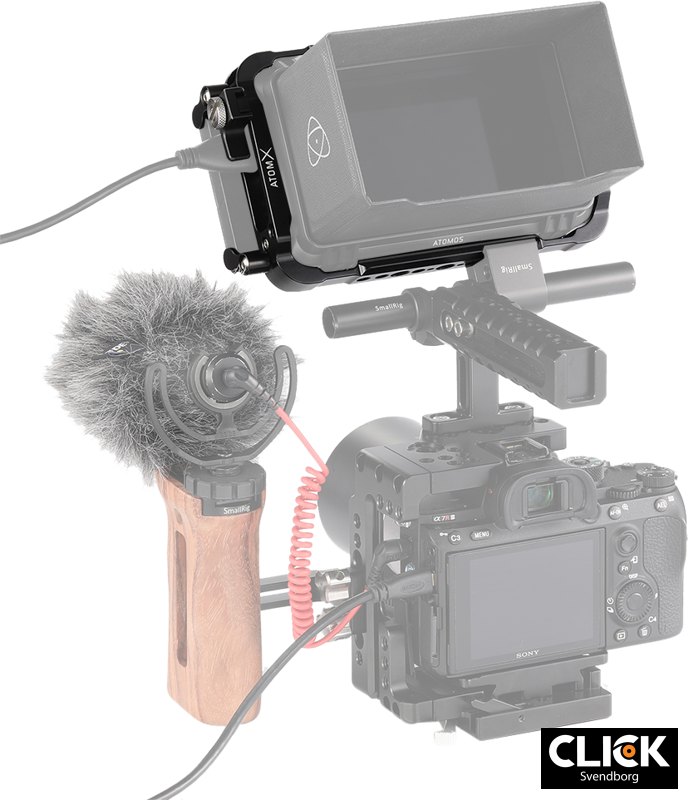

NATO rails are also provided along on both top and bottom to allow use with a range of SmallRig mounts such as SmallRig Ball Head Magic Arm 2071 or the 2072 for quick release.
The cage includes a single HDMI cable clamp that works with a range of cables and is ideal for the AtomFlex 4k 60p cables.
If required, the cage supports the use of a second SmallRig HDMI Cable Clamp 1693 for the HDMI output. It is attached on the left to protect the HDMI cable and port.
For backwards compatibility with Atomos Master Caddy II, the cage also features Drive locks that incorporate the additional size of standard 2.5" drives into the cage’s form factor.

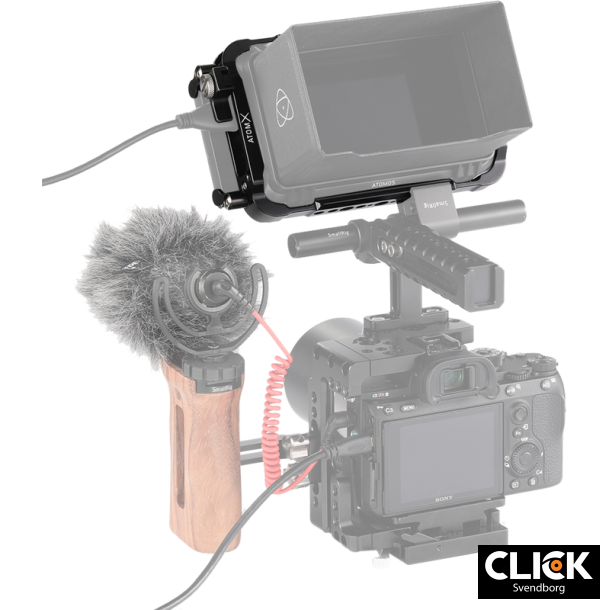

It features raised attachment points on both the top and bottom of the cage for use with neck straps and to accommodate the Atomos Ninja V Sunhood frame.
NOTE:

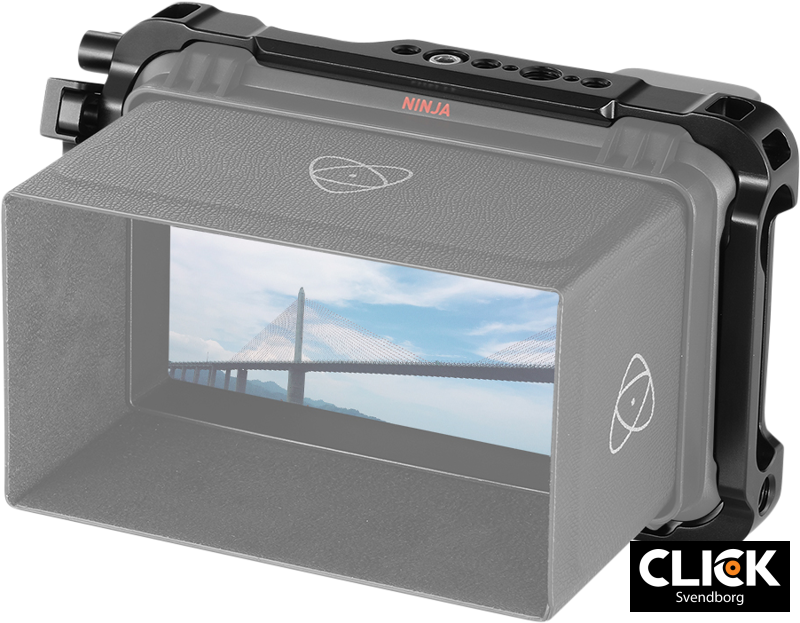

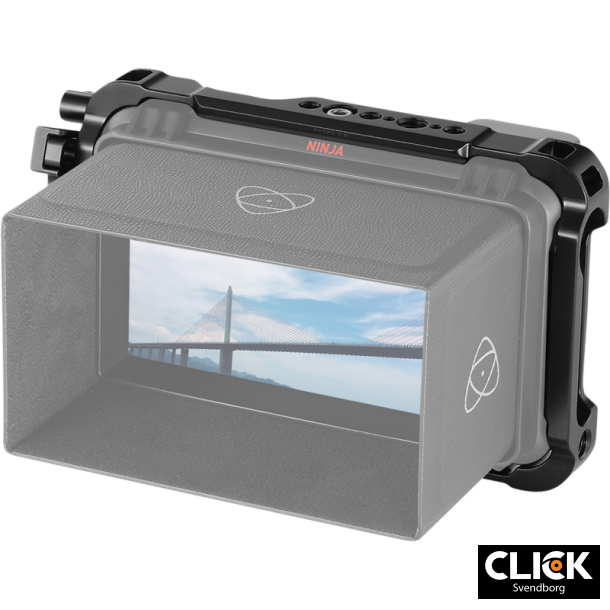

1.This cage is COMPATIBLE with the original Atomos Ninja V Sun hood. The Sun hood frame needs to be fitted before fitting the unit in to the cage and can remains in place providing additional protection and the folding sun hoods can easily be removed
2.If a sun hood is desired, please use SmallRig Sun Hood 2269

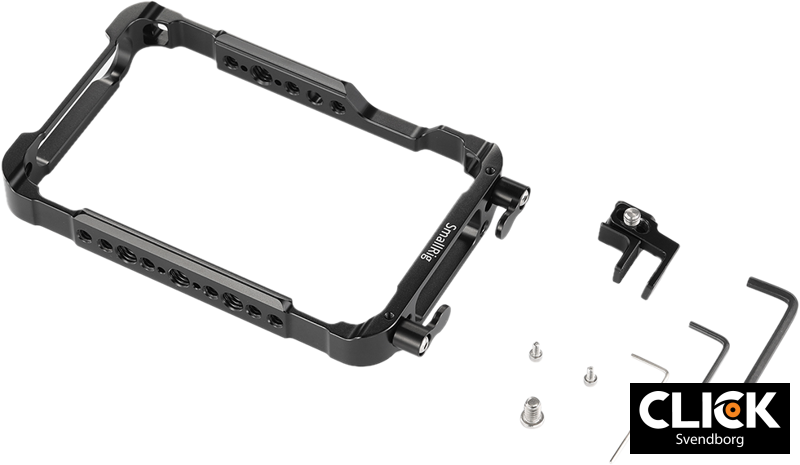

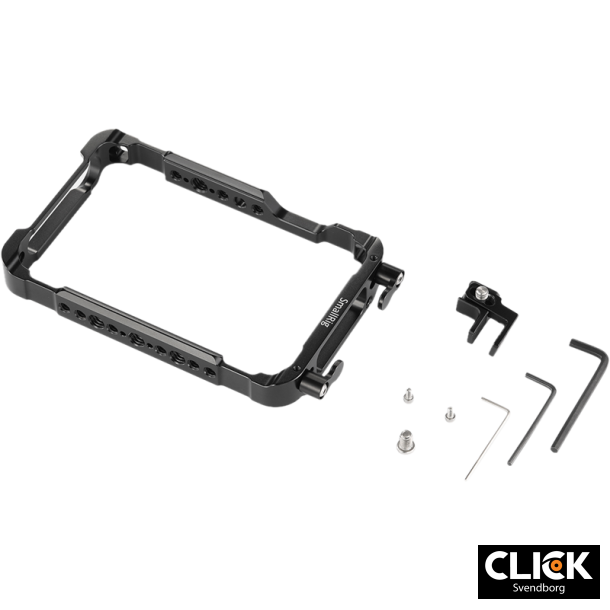

Package Includes:
1 x cage
1 x HDMI Clamp 1693
2 x 1/4" Screw
4 x M3 Screw
3 x Hex Spanner
Tekniske specifikationer:
Anvendelse: Video
Farve: Sort
Dimensioner (DxBxH): 177x107x24,7
Materiale: Aluminium
Vægt (g): 196
Warranty (year(s)): 2
Ramme: Monitor Camera Cage
Fits Brand: Atomos
